Herkunftsort:
China
Markenname:
JCB 3CX Backhoe Loader
Modellnummer:
jcb 3cx Baggerlader
| Category | Specification |
|---|---|

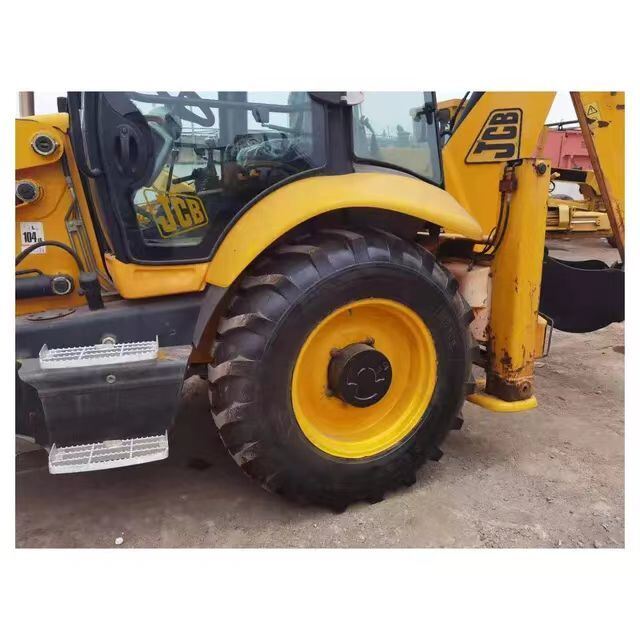

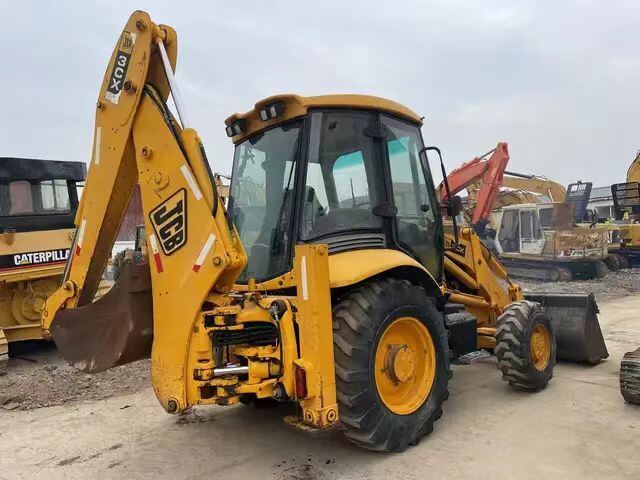

| Model | JCB 3CX Backhoe Loader |
| Operating Weight | Approx. 8,050 kg (with cab) |
| Loader Specifications | |
| - Loader Bucket Capacity | 1.2 m³ (GP Bucket) |
| - Loader Lift Capacity (full height) | 3,450 kg |
| - Loader Breakout Force | 57 kN |
| Backhoe Specifications | |
| - Backhoe Bucket Capacity | 0.26 m³ (common digging bucket) |
| - Max. Digging Depth | 6.02 m (with Extradig) |
| - Max. Reach at Ground Level | 6.67 m |
| - Backhoe Breakout Force | 52 kN |
| Power Unit | |
| - Engine Model | JCB EcoMAX |
| - Rated Power | 55 kW / 74 hp (Net) |
| - Emission Standard | Tier 4 Final / Stage V |
| Transmission | JCB Synchro Shuttle (4x4x4) - 4 Forward / 4 Reverse gears with 4-wheel drive. |
| Performance | |
| - Max. Travel Speed | Up to 40 km/h |
| - Smoothride System (Optional) | Increases transport speed over rough ground by up to 40%. |
| Steering Modes | 2-Wheel, 4-Wheel, Crab Steer (optional) |
| Fuel Tank Capacity | 150 L |
| Service Refill Capacities | |
| - Engine Oil | 14 L |
| - Coolant | 20 L |
| - Hydraulic Oil | 90 L |
| Overall Dimensions (LxWxH) | ~7,450 x 2,490 x 3,980 mm (With Cab & Backhoe) |
Important Note: The JCB 3CX has been in production for decades with numerous variants and updates (e.g., 3CX, 3CX Super, 3CX Pro, 3CX Compact, 3CX ECO). Specifications (especially power, weight, and emission standards) vary significantly between model years and specific configurations. The data above represents a modern Tier 4 Final/Stage V model. Always refer to the official JCB operator’s manual or spec sheet for the exact
specifications of a particular machine.
Why choose us:
Regular maintenance and inspections.
Troubleshooting and repair services.
Replacement parts and components.
Operator training and safety courses.
Video support and assistance.
contact us:
For more information about our technical support and service options, please contact us:
Tel: (86) 147629878128
Whats APP: 86 15298385190
Email: lisalucky2025@gmail.com
Packing and Shipping
Used excavators are packaged in a safe and protective manner to ensure transportation safety.
Based on the size and weight of the excavator, we use wooden boxes, steel frames, or pallets to package the product.
We use ![]()
![]()
![]()
![]()
![]()
![]()
reputable transportation companies, and once the product is shipped, we will provide tracking information.
| Products 产品 | Brand 品牌 | Model |
| Used Excavator | CAT | 306,307,312D,315D,320C,320D,325,330D,336D,349D |
| Hitachi | EX60,EX70,EX75,EX120,EX200,EX240,EX270,EX300,EX350,EX450 | |
| ZX60,ZX70,ZX75,ZX120,ZX200,ZX270,ZX300,ZX350,ZX450 | ||
| Komatsu | PC35,PC55,PC60,PC70,PC120,PC130,PC200,PC220,PC300,PC350,PC360,PC400,PC450 | |
| Kobelco | SK60,SK75,SK120,SK200,SK260,SK350 | |
| Doosan | DH55,DH60,DH150,DH220,DH225,DH300 | |
| DX55,DX60,DX150,DX220,DX225,DX300 | ||
| Hyundai | 130,150,215,225,305 | |
| Volv-o | EC60,EC140,EC210,EC240,EC290,EC300,EC360,EC460,EC480 | |
| Kubota | U15,U17,U30,U35,KX155,KX165 | |
| SANY | 55,60,75,95,135,215,235 | |
| Used Bulldozer | CAT | D3(C/G/H),D4(C/H),D5(K/M),D6(G/H),D7G,D8R,D9R |
| Komatsu | D31EX,D65E,D85,D155,D275,D375,D65PX | |
| Shangong | SEM816,SEM818 | |
| Shantui | SD13,SD16,SD22,SD32 | |
| Used Loader | CAT | 938G,966F,966H,966G,950GC,980G |
| Komatsu | WA320,WA380,WA470,WA500,WA600 | |
| XCMG | 50GN | |
| LIiugong | LG856,856H,835,836,862 | |
| Shangong | SEM650,652 | |
| Lingong | LG936,956,958,968 | |
| Used Backhoe Loader | JCB | 3CX,4CX, |
| CASE | 508M,580L,580N | |
| Lingong | 776,777 | |
| Used Motor Grader | CAT | 12G,4G,120G,140G,140K |
| Komatsu | GD511A,GD655 | |
| XCMG | GR180,GR215 | |
| LIiugong | 61,416,141,804,215 | |
| Shangong | 919,921 | |
| Lingong | 9180 | |
| Used Road roller | SANY | STR140,STR160,SSR220A,SSR200A |
| XCMG | CA25/30,XS143/163/183,XS203/223/263 | |
| Liugong | LG614,616,618,620,622,626 | |
| Shantui | SR16,SR18,SR20,SR22 |
